Metalworking Machines - Shapers

Shapers can be dangerous if not used properly.

• Read the owner's manual carefully.
• Make sure you understand instructions and are properly trained before operating a shaper.

Refer to OSH Answers Metalworking Machines - General for general safety tips.

A shaper is used to finish metals with a cutting tool that moves back and forth (the table is stationary). The cutting tool cuts in one direction only. It is similar to a planer where the work table moves back and forth while the cutting tool is held stationary.

• Wear C.SA-certified safety glasses with side shields, or a face shield.
• Wear appropriate CSA-certified footwear.
• Make sure that the shaper has a working emergency start/stop button (e-stop) within easy reach.

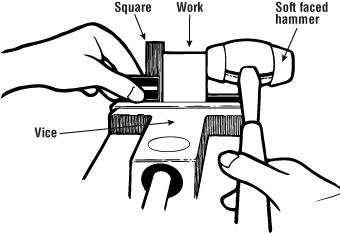

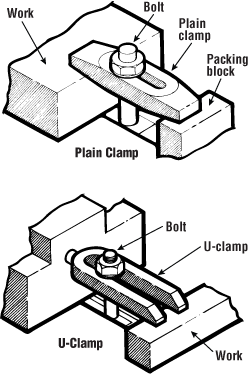

• Secure the work with shaper vises, parallels, hold downs or clamps and bolts.

• Make sure that the vice, tool, and ram are securely fastened.
• Remove any burrs, rough edges or cuttings that may obstruct how the work piece fits into the vice.
• Check that the tool and tool head clear the work piece, and the column on the return stroke.
• Make sure that the table cross-feed, tool-head feed, and attachments are working properly.
• Set the cutting tool properly to avoid vibration or chatter.
• Stand to the side (parallel) of the cutting stroke and not in front of it.
• Prevent cuttings from flying. Use a metal shield or wire screen at all times.
• Use a brush or rake to remove cuttings after any moving parts have stopped moving.
• Keep the floor around the shaper free of oil and grease.
• Keep the working surface clean of scraps, tools, and material.
• Keep belts, pulleys, cutters and other parts in good repair. Replace when worn or dull.
• Keep machine guards in good repair and in use every time.

• Do not remove cuttings or reach across the table while the ram is moving.
• Do not adjust the machine while it is operating.
• Do not use bolts or nuts with stripped threads to hold down work clamps.
• Do not leave a shaper running unattended.
• Do not use bare hands or compressed air to remove cuttings.
• Do not wear loose clothing, gloves, neckties, rings, bracelets or other jewellery that can become entangled in moving parts. Confine long hair.
